In commercial and hospitality environments, the failure of an emergency communication system carries severe legal, financial, and life-safety liabilities. Facilities must balance the need for frictionless, immediate access to emergency services with the necessity of preventing accidental dispatches. You need one-touch dialing to work flawlessly during a crisis, but you also need robust verification to ensure accurate location data is transmitted every single time. Understanding the technical sequence of these systems is critical. You must know exactly how an emergency call is initiated, verified by the network, and handed over to a Public Safety Answering Point (PSAP). This knowledge directly impacts how IT and facility managers evaluate and upgrade their communication infrastructure. When you deploy the right hardware and routing logic, you protect both your guests and your operational budget while maintaining strict compliance with federal regulations.
Verification Prevents Misrouting: Modern systems utilize automated handshakes and location database queries to verify an emergency call before it reaches the PSAP, reducing false dispatches.
Hardware Dictates Reliability: The physical design of the endpoint—from a standard hotel telephone to a specialized waterproof unit—impacts the success rate of one-touch emergency activations.
Cancellation Windows Reduce Accidental Dispatches: Incorporating a brief visual/audible timeout period allows users to abort accidental triggers before network-level handover occurs.
Compliance is Mandatory: E911 regulations (such as Kari’s Law and RAY BAUM’S Act in the US) require precise location routing and immediate administrative notification, making the verification phase a strict legal requirement.
Infrastructure Determines Capability: Transitioning to IP-based systems allows for richer data transmission, including active post-call alerts and SIP-based location data, during the handover process compared to legacy analog lines.
Defining a successful emergency call in a commercial setting requires strict success criteria. A successful dispatch demands zero latency, highly accurate location data, and a completely uninterrupted connection. When a user presses an emergency button, the system must establish an open line to first responders without hesitation. Any delay or dropped packet during this sequence compromises life safety and exposes the facility to severe liability. In the field, we see systems fail because the local gateway drops the SIP registration right when the button is pressed. You have to ensure the network prioritizes this traffic above all else.
The technical journey of an emergency call follows a precise handover sequence. It begins with endpoint activation. The local PBX or gateway processes the signal immediately. Next, the external network verifies the routing data. Finally, the call reaches the PSAP. Each step in this chain must execute flawlessly. If the local gateway fails to append the correct location headers, the external network cannot route the call to the appropriate regional dispatcher. We often spend hours tracing SIP packets just to verify that the PBX is actually sending the correct building and floor information.
Specialized emergency interfaces utilize strict lock-screen and UI bypass protocols. Firmware is designed to bypass locked keypads and restricted user privileges. Even if an active non-emergency call is in progress, the system drops the standard call to establish an immediate outbound emergency line. This ensures that administrative restrictions never block a user from reaching help. I have seen poorly configured systems where a guest trying to dial out was blocked because they hadn't paid a deposit; emergency bypass firmware prevents this exact scenario.
Facility managers must weigh the cost of false positives against the catastrophic risk of failed connections. Accidental emergency calls result in municipal fines and wasted first responder resources. However, a failed connection during a genuine crisis carries devastating legal consequences. Robust verification protocols mitigate both risks by filtering accidental triggers while guaranteeing priority routing for actual emergencies. You need a system that filters out the noise but never drops a real call.
Physical devices employ hardware-level verification to prevent accidental triggers. Manufacturers design these endpoints with specific physical safeguards. Some units require a deliberate three-second button hold. Others feature recessed buttons or dual-action triggers. Multi-press sequences, such as a rapid five-press activation, also help confirm user intent. These physical barriers stop accidental bumps from initiating a full network dispatch. When installing these in high-traffic corridors, a recessed button is mandatory to stop cleaning carts from bumping the dialer.
Technical implementations often include a brief timeout and cancellation window. A five-to-ten second pre-dialing delay gives users a chance to correct mistakes. During this window, the device provides local audio and visual cues. If a user accidentally triggers the sequence, they can abort the call before it routes to external carriers. This simple delay drastically reduces the volume of false dispatches hitting the local PSAP. We always configure a 5-second audible beep before the SIP invite is actually sent out.
Network-level handshakes handle the heavy lifting of data verification. When a VoIP system initiates an emergency dial, it checks the registered endpoint address against the Automatic Location Identification (ALI) database. This SIP and E911 handshake ensures the transmitted location data matches the physical origin of the call. Accurate ALI database records are non-negotiable for compliant emergency routing. If you move a phone from the 3rd floor to the 4th floor and forget to update the switch port mapping, the ambulance goes to the wrong floor.
Routing logic depends entirely on this verification phase. If a location is verified against the ALI database, the call routes directly to the local PSAP. First responders receive exact dispatch coordinates immediately. If the location is unverified, the system routes the call to a national emergency call center. There, an operator must perform manual triage and verbally verify the caller's location, costing precious seconds during an emergency. You want to avoid the national triage center at all costs by keeping your databases clean.

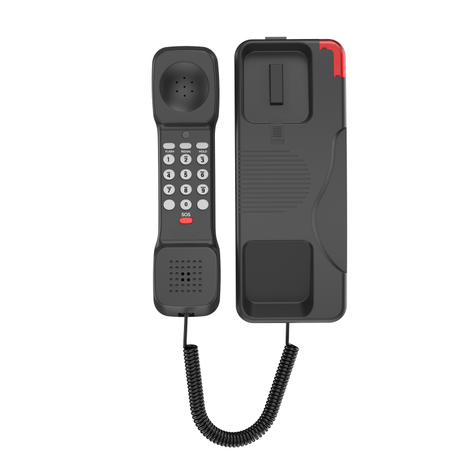

Selecting the right endpoint requires matching the hardware to its specific deployment environment. In-room and suite deployments serve as the baseline for emergency compliance. A standard hotel telephone must provide clear, accessible one-touch buttons. Guests need immediate visibility of the emergency dialer without reading complex instructions. The physical design must prioritize ease of use under high-stress conditions. We always mount these securely to the nightstand or desk so they don't get knocked off during a panic.
Deploying a cordless hotel telephone introduces unique location tracking challenges. When a guest moves the handset away from its registered base station, transmitting exact, real-time location data becomes difficult. Facility managers must ensure the PBX maps the emergency call to the base station's fixed location. Clear signage should remind users of this limitation to avoid confusion during a dispatch. You have to train the staff to understand that the cordless handset's location is tied to the base, not where the guest is standing.
High-risk and environmental deployments demand ruggedized hardware. Pool areas, spas, and bathrooms require a waterproof hotel telephone to guarantee functionality. You must verify the ingress protection (IP) ratings of these devices. Sealed one-touch buttons prevent moisture-induced false triggers and protect internal circuitry from corrosion. A standard phone will fail rapidly in these high-humidity environments. I've pulled standard phones out of pool areas that were completely rusted inside after just three months.
Hallways, stairwells, and common areas necessitate high-visibility solutions. A dedicated wall mounted hotel telephone provides tamper-resistant emergency access. These units often feature armored cords and heavy-duty faceplates. Serving as a dedicated Emergency Call Telephone, they ensure that anyone in a public corridor can initiate a verified call without searching for a staff member. We bolt these directly into the concrete block to ensure they cannot be vandalized.
Infrastructure compatibility dictates the data-handling capabilities of your endpoints. A modern VoIP hotel telephone transmits detailed SIP headers, LLDP-MED switch port info, and exact room numbers directly to the PBX. Legacy analog systems cannot provide this granular data without expensive external gateways. Upgrading to IP-based endpoints ensures full compliance with modern E911 dispatch requirements. Pulling CAT6 to every room is an investment, but it solves the location data problem permanently.
| Hardware Type | Primary Deployment Area | Key Verification Feature | Environmental Resistance |
|---|---|---|---|
| Standard Analog Endpoint | Guest Rooms | Pre-programmed dial string | Low (Indoor only) |
| Cordless Endpoint | Suites / Large Rooms | Base-station location mapping | Low (Indoor only) |
| Waterproof Endpoint | Pools / Spas / Bathrooms | Sealed one-touch activation | High (IP65 or better) |
| VoIP SIP Endpoint | Facility-wide | LLDP-MED and SIP header data | Variable based on model |
Compliance with Kari's Law requires simultaneous internal notifications whenever an emergency call is initiated. The system must notify the front desk, on-site security, or IT administrators immediately. This parallel alert system ensures that local staff can guide first responders to the exact room upon arrival. Failing to implement these notifications violates federal guidelines and delays critical on-site assistance. We set up the PBX to ring a dedicated red phone at the security desk the moment 911 is dialed.
Automated status alerts provide real-time situational awareness. Modern systems handle post-call events by sending automated SMS or SIP alerts to facility staff. These alerts contain the caller's room number, identity, and the exact time of the call. Receiving this data immediately after the call terminates allows security teams to secure elevators and clear access routes for emergency personnel. You want your security team moving towards the room before the ambulance even arrives.
Maintaining callback routing security is a critical post-call function. The system must keep an open line for emergency services to call back if the connection drops. However, the PBX must secure this line to prevent external callers from exploiting the emergency bypass. Strict routing rules ensure only verified PSAP numbers can ring directly back to the initiating endpoint. We configure the firewall to only allow inbound SIP traffic from the specific carrier IP addresses used by the local PSAP.
Relying solely on automated network routing presents different risks compared to human confirmation. Automated verification is fast but relies entirely on accurate database records. Implementing an internal security desk intercept allows staff to verify the emergency, but it introduces dangerous delays. Legally, delaying a 911 call to perform internal triage exposes the facility to massive liability. Direct automated routing remains the safest compliance strategy. Never put a human in the middle of a 911 call path.
The choice between on-premise PBX and cloud-hosted solutions impacts handover speed. On-premise systems offer localized control and immediate internal routing. Cloud-hosted solutions provide robust redundancy but rely on external internet connectivity. You must ensure your cloud provider supports localized E911 routing to prevent calls from bouncing to out-of-state call centers during internet disruptions. We always configure a local survivable branch gateway just in case the main fiber line gets cut.
Power redundancy is the Achilles' heel of IP-based emergency systems. VoIP endpoints depend entirely on Power over Ethernet (PoE). During a facility-wide power outage, these phones will fail unless backed by uninterruptible power supplies (UPS). Facility managers must audit their network switches to ensure adequate battery backup exists to keep emergency lines active during grid failures. You need at least four hours of battery runtime on every PoE switch that powers an emergency phone.
Testing protocols must be executed without triggering live dispatches. You cannot simply press the button to see if it works. Outline safe, compliant methods for testing endpoints. Schedule silent tests with the local PSAP in advance. Use dedicated loopback test numbers to verify SIP routing logic. Regular testing ensures hardware functionality without draining municipal emergency resources.
Contact the local PSAP administrative line to schedule a specific testing window.
Reconfigure the PBX dial plan to route the emergency test string to an internal loopback number.
Physically press the one-touch button on the endpoint to verify hardware activation.
Check the SIP trace logs to confirm the correct location headers are attached to the outbound invite.
Restore the PBX dial plan to live routing and document the test results in the compliance log.
Maintaining accurate location databases requires constant vigilance. Facility renovations, dynamic IP reassignments, and network reconfigurations easily corrupt ALI databases. If a phone is moved to a new room but the database is not updated, first responders will arrive at the wrong location. Implement regular automated audits to reconcile physical switch ports with registered E911 locations. We run a script every Friday night that compares the LLDP switch port data against the E911 database to catch any unauthorized phone moves.
User education and clear signage mitigate panic during high-stress situations. You must place clear, standardized instructions next to all emergency endpoints. Guests need to know exactly what will happen when they press the button. Proper signage reduces user error, prevents accidental triggers, and ensures the system is used correctly when seconds matter most. Use high-contrast, glow-in-the-dark placards for stairwells and pool areas.
The reliability of one-touch emergency dialing relies equally on robust physical hardware and precise, compliant network-level verification protocols. You cannot achieve compliance by focusing on just one aspect. The endpoint must physically prevent accidental triggers while the network must flawlessly verify and route the location data. This dual approach guarantees that when a crisis occurs, the system performs exactly as engineered.
Decision-makers should select endpoints based on specific environmental risks. Deploy waterproof units in wet areas and standard units in controlled environments. Simultaneously, ensure the underlying PBX or VoIP infrastructure supports granular E911 location data transmission. Hardware and infrastructure must work in tandem to meet modern life-safety standards.
Conduct a comprehensive physical audit of all current emergency endpoints to identify damaged or non-compliant hardware.
Verify the accuracy of your ALI database against your current physical floor plans and network switch configurations.
Consult with a specialized telecom vendor to evaluate upgrading legacy analog lines to SIP-based VoIP infrastructure.
Implement and document a safe, routine testing schedule using loopback numbers and scheduled PSAP coordination.
A: The device initiates a pre-programmed dialing sequence. If a timeout window is configured, it waits 5 to 10 seconds to allow for cancellation. Once the window passes, the local PBX routes the call to the external network, appending specific location data headers before handing it over to the PSAP.
A: The VoIP system uses LLDP-MED to identify the exact network switch port the phone is connected to. It then matches this data against the registered Automatic Location Identification (ALI) database, sending precise room-level coordinates to the emergency dispatcher via SIP headers.
A: Intercepting or delaying a 911 call violates federal laws like Kari's Law. The call must route directly to the PSAP. However, the system must simultaneously send an automated internal notification to the front desk or security team to alert them of the emergency.
A: Verified routing means the caller's location data matches the national database, allowing the call to route directly to the local municipal dispatcher. Unverified routing occurs when location data is missing or mismatched, forcing the call to a national triage center for manual operator verification.
A: Yes, if the hardware or PBX is configured with a cancellation window. This brief 5-to-10 second delay provides local audio or visual cues, allowing the user to hang up or press a cancel button before the system initiates the external network handshake.
A: Modern PBX systems trigger automated SIP or SMS alerts immediately after the call terminates. These alerts notify facility managers and security personnel, providing the exact room number, time of the call, and endpoint identity to facilitate immediate on-site response.
A: You must coordinate directly with your local PSAP via their non-emergency administrative line to schedule a live test. Alternatively, IT administrators can temporarily route the emergency dial string to an internal loopback test number to verify PBX processing without contacting external carriers.
